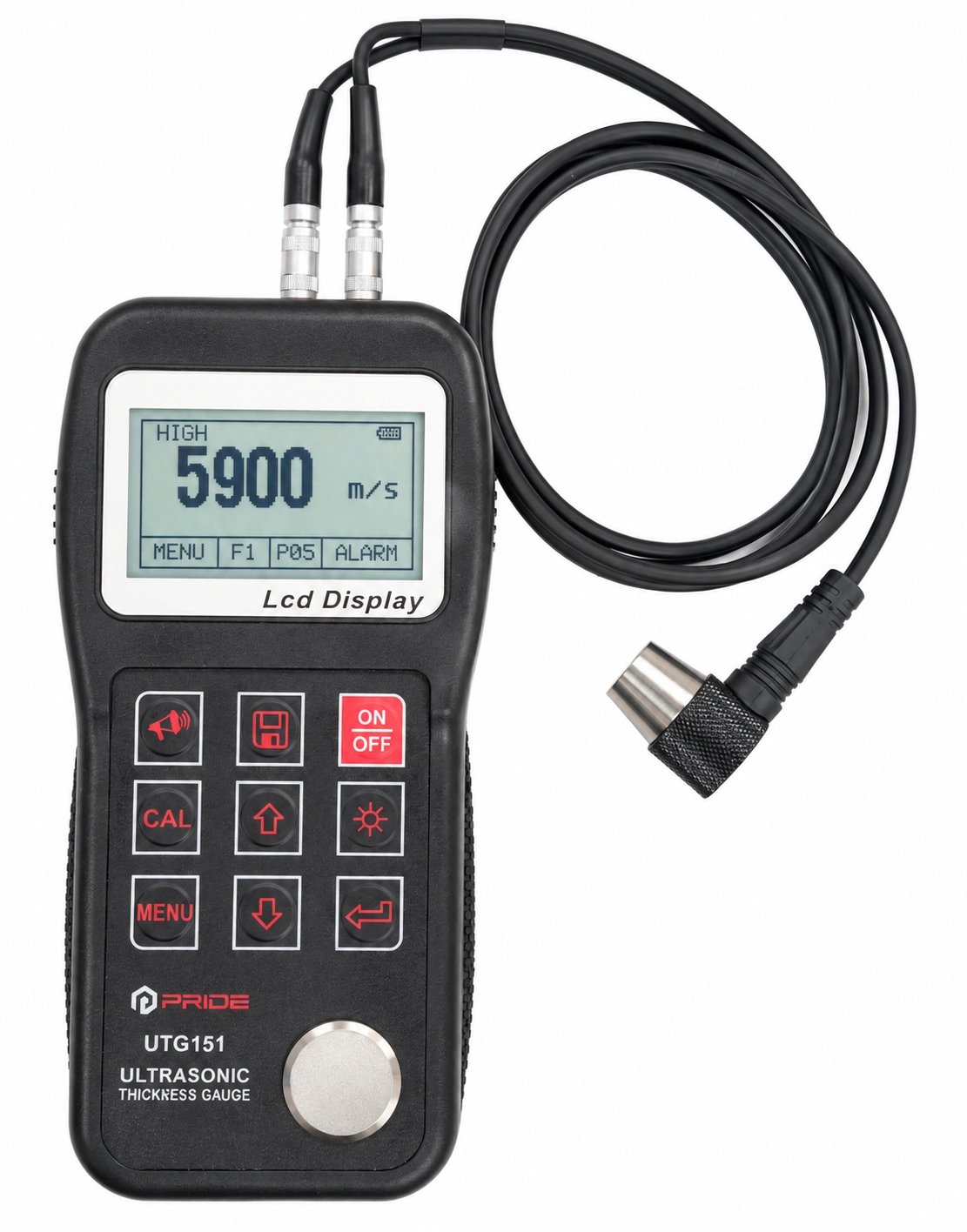

UTG-151 ultrasonic thickness gauge
Férová cena
UTG-151 ultrasonic thickness gauge
Price:
After login
Availability:
in stock
Product description
Technical specification:
| Measuring range | 1.00 ~ 300 mm |
| Sound velocity | 1000 ~ 9999m/s |
| Display | LCD with back-light, resolution 128 x 64 |
| Resolution | 0.1 / 0.01 mm |
| Units | mm / inch (selectable) |
| Memory | 5 groups (100 meas. results / group) |
| Measuring accuracy | +/- (0.5 % thickness +0.02) mm - depends on materials and conditions |
| Alarm | tollerance measuring field |
| Power supply | 3V (2 AA alkalic batteries) |
| Data output | RS 232 |
| Dimensions | 150 x 74 x 32mm |
| Weight | 238 g |
| Working time | 100 hod. (w/o backlight) |

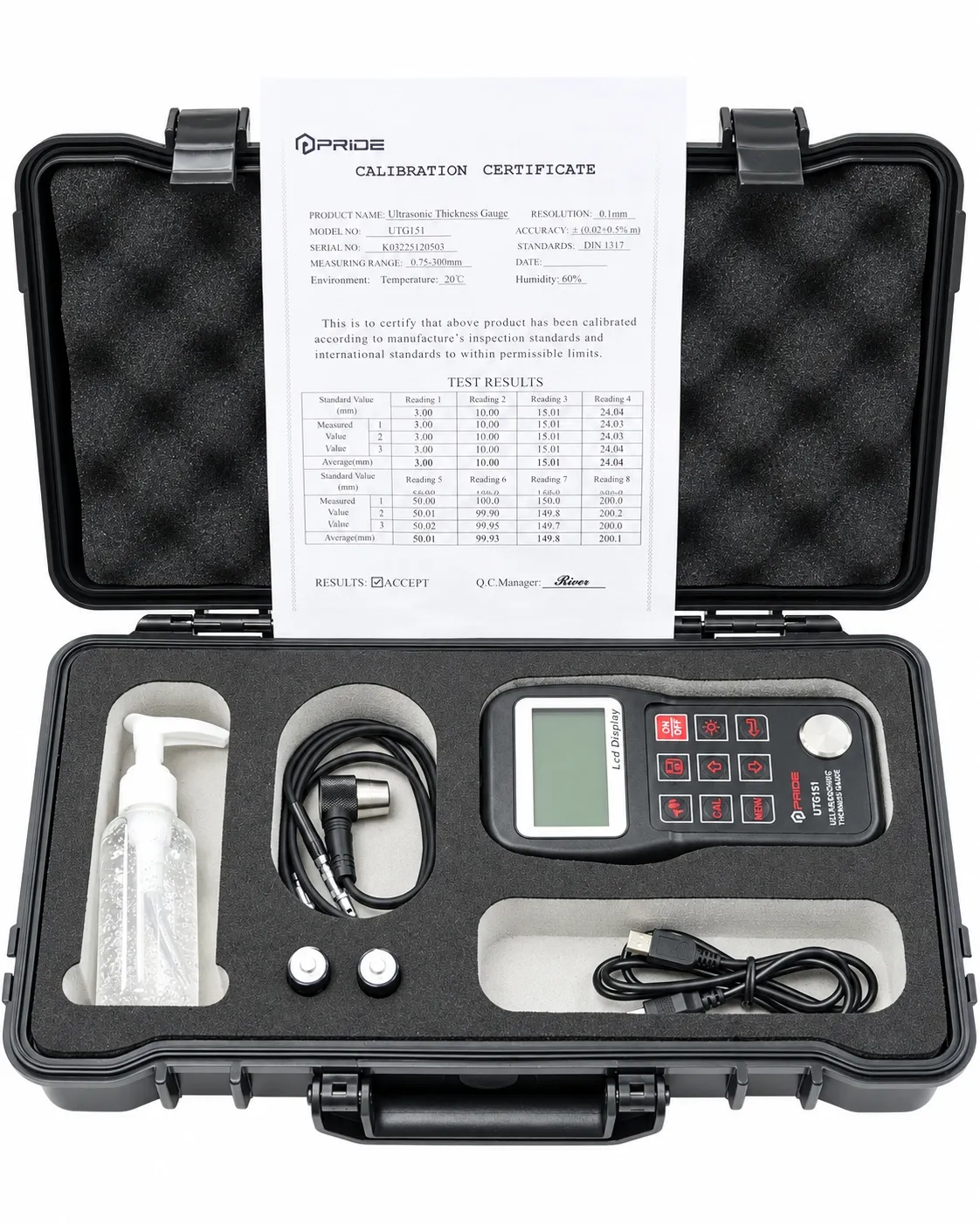

Standard delivery:
- Probe
- Couplant
- Transportation case
- Baterries

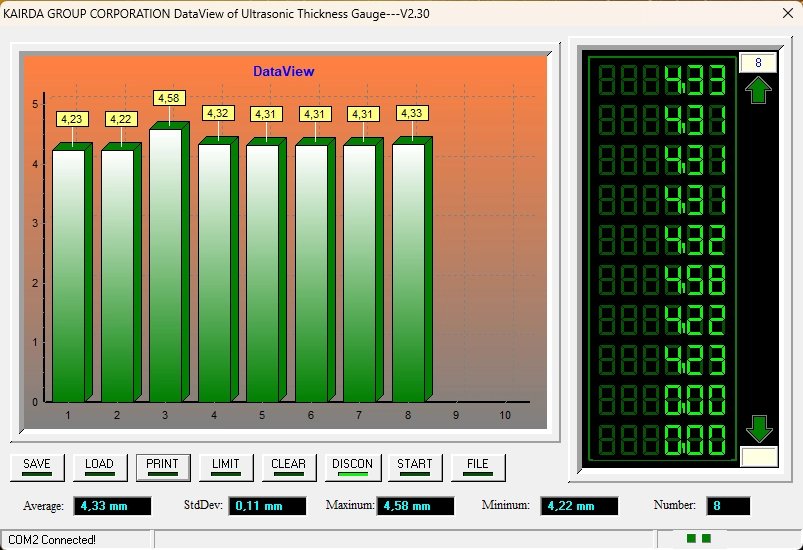

- Software + data cable to PC
- Operation manual
Optional accessories:
- Special probes
